Shw Series of High-speed Automatic Aluminum Foil Packing Machine

APM-USA

$4,000.00
SKU: P5219S

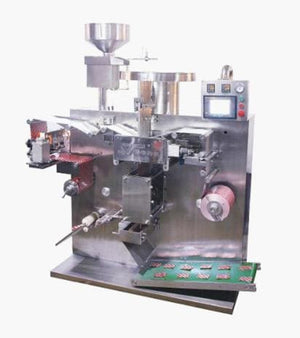

 SHW series of high-speed automatic aluminum foil packing machine



  1. Product summarize:

SHW series of high-speed automatic aluminum foil packaging machine is a composite packaging machine taking aluminum foil paper, poly paper as packing material, The machine is a new product which is produced trough constant researching, improving and innovation as well as by digesting international advanced technology and combining with the actual situation in pharmaceutical industry. And it is also equipped with the common components for light, electricity and gas , etc which is imported with original packing , to ensure the product’s inherent quality and service life, and to realize high functioning, low-power, low noise , frequency control and other performance requirements; The machine shell is equipped with full stainless steel, the equipment surface which is in direct contact with the material is smooth, flat, no dead corner, easy to clean or disinfect, corrosion-resistant, non-chemical changes occur with the drugs or drug absorption, and is easy for operation in production and maintenance and is complied with national GMP requirements.

     This machine is suitable for packaging different specifications of tablets and capsules. And is widely sued in pharmaceutical, electronics,  food and other fields.

  1. Features:

1).      Full automatic control, precision and beautiful packaging,

2).      Refined and compact in shape figure, high output, low noise;

3).      Convenient in operation and maintenance;

4).      Fast and time-saving in die replacement;

5).      Layout size can be freely adjusted;

6). Pneumatic punching can be freely adjusted to the desired location;

7).    Digital temperature control device make temperature control more accurate;

8).      Stepless speed regulation;

9).      Usage of aluminum foil, poly paper, suitable for all kinds of tablets and capsules;

10). Good sealing performance and long shelf-life;

11). Curling system can make layout more clean and beautiful, in the meanwhile keeping your workplace clean, tidy and easy for site-clearing;

12). Water-cooling system, ensure the smooth and carefree working of feeding system

13). Optional configurations:

a:     Drainage Piece Eliminating System: Adopt the Mitsubishi programmable logic controller(PLC) to control the packing process,

if it occurs grain missing layout caused by too big difference in size of the pack or lack of packaging material, the system will automatically screen and accompanied by alarming so as to avoid the products of grain missing come into the market.

b:  Rolling printing system of batch number: This system has two ways of rolling printing: 1.Use imported solid ink wheel to rolling paint the “production date, batch number, period of validity”, etc to the desired print location; 2.Direct rolling printing without ink wheel. It has features of rolling printing location adjustable, clear and can reduce the machine noise, etc.

c:   Graphic Version Check System: according to the customer requirements, we use the cursor tracking system to complete version check automatically;

d:   Touch Screen : The escalation of the ways to key control, its interface is friendly and functional

  1.  Main technical parameters

Model

SHW-160(model)

SHW-200(model)

SHW-240(model)

SHW-280(model)

capacity

400-600pcs/min(4line)

600-800pcs/min(6line)

600-1200pcs/min(8line)

800-1600pcs/min(8line)

Max package width

160mm

200mm

240mm

280mm

Power supply

220V50/60HZ

220V50/60HZ

220V50/60HZ

220V50/60HZ

Motor power

0.4kw

o.4kw

0.4kw

0.4kw

Heat power

3kw

3kw

3kw

3kw

Slicing number

1-5

1-5

1-5

1-5

Compressed air

0.3mpa

0.35mpa

0.4mpa

0.45mpa

Overall dimensions(L x W x H)

850 x 1150 x 1630

890 x 1150 x 1630

950 x 1150 x 1630

990 x 1650 x 1630

Weight

450kg

550kg

600kg

650kg
