Dph 190 Blister Machine

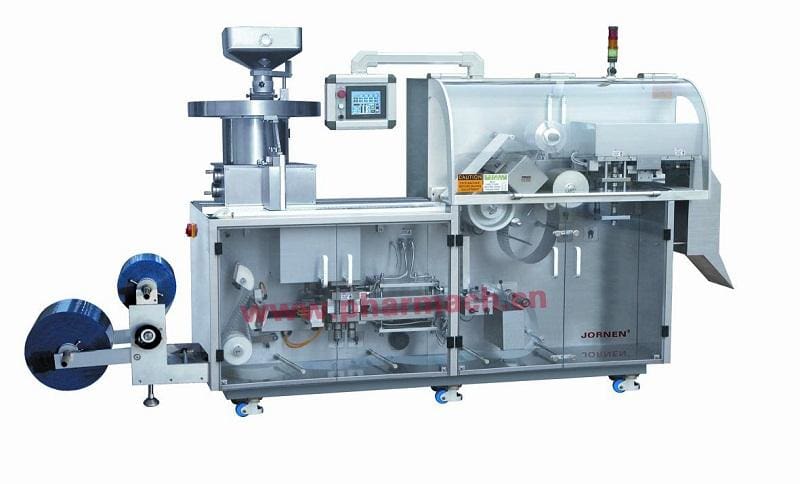

DPH 190 Blister machine

Descreption:

1.Adopts platen forming,rotary sealing;it is an innovative and efficient Blister Machine.

2.The machine accommodates forming material reels up to 600mm in diameter and a waste material trimming cutter,

which allow production runs of approximately 90 minutes;therefore reducing the material replacement frequency.

3.Equipped with integrated forming material splicer to enchance efficiency.

4.Servo-regulated drive achivevs big scale of adjustment in draw off length.

5.Innovative structure enables alu\pvc(thermal forming) and alu\alu (cold forming)converts at any time.No

need for additional pars;change only the formats.

6.Automatic format positioning system achieves straight forward format change over.

Main Technical parameters:

Max.speed:              alu\alu100 punches\min,alu\pvc200 punches\min

Max.output:              450 blisters\min(alu\pvc blister size 57mm*80mm)

Max.forming area:     175mm*180mm

Max.forming depth:    12mm

Material : Max.width:  190mm

Machine power:          15kw

Machine dimension:     3800mm*950mm*2000mm

Machine weight:           2000kg
