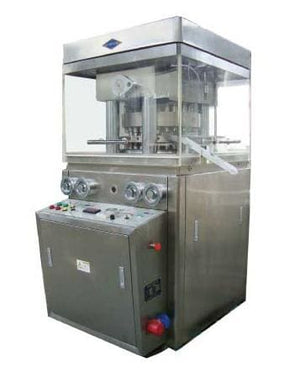

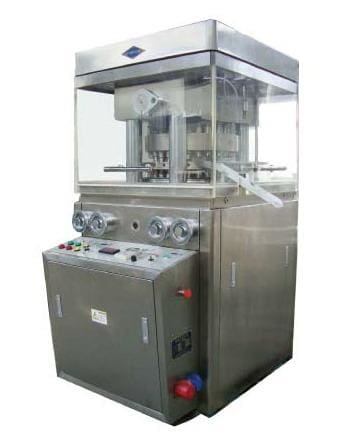

Zp-23 25 27 Rotary Tablet Pres

APM-USA

$4,000.00
SKU: P5121S

ZP-23 25 27 rotary tablet pres



  1. Main application

The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription . It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.(Note: when manufacturing double color piece, it only need replacing components and adding power absorbing apparatus which greatly lowers the cost and raises profit..



  1. Features
  2. Machine meet GMP and made in stainless steel. The inner tablet press surface already be special treated, which could keep surface luster and prevent from being polluted crossly.
  3. Equipped with transparent window which could help to observe the status of pressing tablet. Transparent window could be fully opened, Machine easy to clean and Maintenance. All monitors and operating components work well together.
  4. Machine speed could be adjusted.
  5. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
  6. Ransmitting system is sealed in the oil box under the working area, which work separately. No pollution and easy to send out heat and resist grinding.
  7. A power suction unit is attached to take the residual power during operation, so that blockage powder can be collected and be reused.



  1.  Technique parameter

TYPE

ZP-23

ZP-25

ZP-27

Dies(sets)

23

25

27

Max.pressure(Kn)

100

100

100

Max.Dia.of Tablet(mm)

45

40

30

Max.Thickness of Tablet(mm)

15

15

15

Max.Depth of fill(mm)

30

30

30

Max.output of one-layer tablets(pcs/h)

69000

75000

81000

Rotational diameter(mm)

445

445

445

Rotational speed of revolving table(r/min)

10-25

10-25

10-25

Diameter of middle mould(mm)

52

52

52

Highness of middle mould(mm)

38

38

38

Length of up and down punch pole(mm)

45

45

45

Length of up punch pole(mm)

175

175

175

Length of down punch pole(mm)

180

180

180

Overall dimensions(mm)

1000 X 1250 X 1900

1000 X 1250 X 1900

1000 X 1250 X 1900

Net weight(kg)

3200

3200

3200

Motor model

YU132M4A

YU132M4A

YU132M4A

Motor(kW)

7.5

7.5

7.5

Voltage(V)

380

380

380
