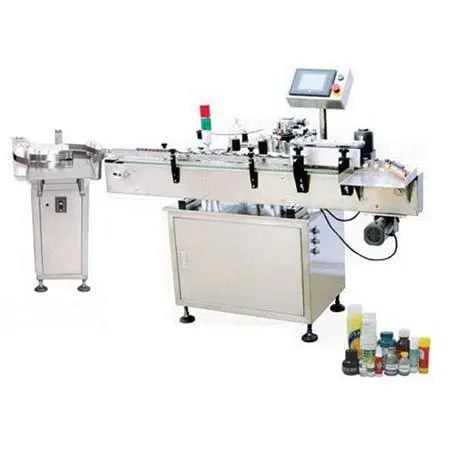

Vertical Self-adhesive Labeling Machine (mpc-as)

APM-USA

$4,000.00
SKU: P4921S

Application:

Vertical Self-Adhesive labeling machine is mostly applicable for the automatic labeling of column package containers for medicine, daily chemical, food, cultural supplies, electronics and etc. It can automatically check the length of labels and is equipped with warning device of insufficient labels, broken labels and no chromatapes. The touch screen is easy and visual to operate. In addition, it has rich help functions and failure display functions.

Technical parameter:



Model

MPC-AS-I

MPC-AS-II

Drive

Step motor driven

Direction

Right/left

Labeling speed

120-250pcs/mintue

Label size

W:10-80mm L:15-150mm

W:10-150mm L:15-300mm

Precision

+1mm(subject to roundness and verticality of the bottle)

Label roll

Max:?300mm

Label core

Stander:?75mm(3”)

Machine size

1600*800*1300mm

1800*800*1300mm

Weight

220kg

260kg

Power

AC 110V/220V  50/60HZ  500W

Coding device

Electric DT-280/ Pneumatic DT-380
