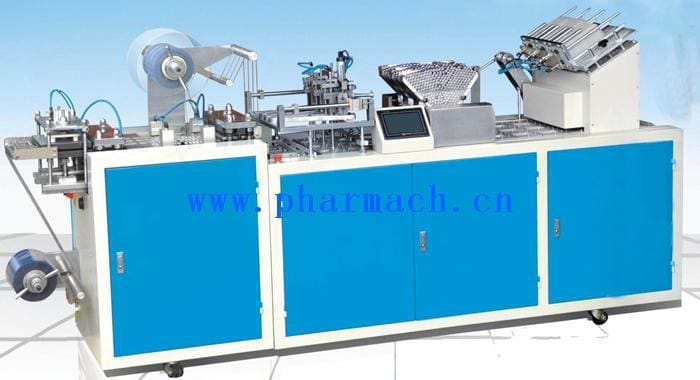

Model Dzp-500s Type Flat Paper-plastic Machine
Model DZP-500S type Flat Paper-plastic Machine
- Performance feature:
It is a new packing equipment that was improved, innovated and researched successfully by our technicians. It employs man-machine interface, PLC control, encoder support, touch screen operation and automatic counter are employed. And thus its route is adjustable. It works precisely with convenience of operation. Equipped with a friction wheel decelerator mechanical progressive speed regulation, it can work stably.
- Application scope:
It is applicable for paper-plastic packing articles of daily use, stationery, minor hardware, cosmetics, medicines, as well as battery, toothbrush, pens, glue, plug base, bearing, etc. to improve the grade of the finished products.
III. Technical parameters:
Model |
500S |
Packing material |
PVC hard piece:(0.15-0.35)x320mm Paperboard:200g-700g 125x420mm |
Applicable requirement |
Pressure:0.5-0.8Mpa Air consumption quantity:?0.3m3/min |
Power consumption |
380v 50Hz 7kw |
Mould cooling water |
Running water or circle water consumption 50L/Min |
Overall dimension |
3600 x 850 x 1500mm (LxWxH) |
Weight |
1500KG |
Production capacity |
10-30punches/min |
Route scope |
50-130mm |
Max area of paperboard |
500x125mm |
Max forming area and dept |
310x120x40mm |
