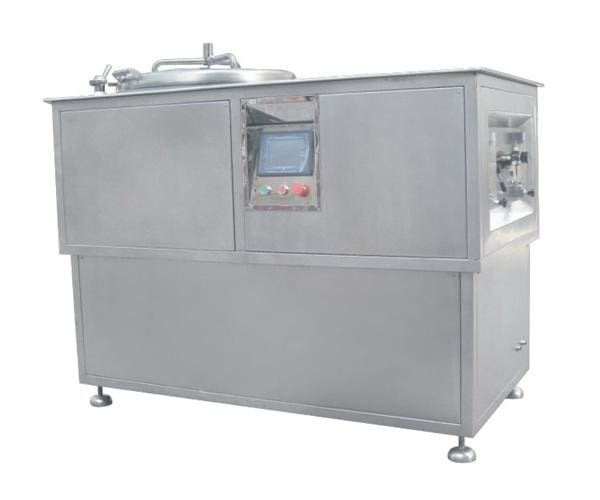

Khz-c Type High Wet Granule Machine
KHZ-C type high wet granule machine
Application:
The KHZ-C type high wet granule machine we made(also known as wet hybrid polymer),which is
pharmaceutical industry production of powder in tablets,adhensives for attaining the wet granule
special equipment.Also it can be applied to food,chemical industry of powder materials mixed with granulation.
Principle:
The knife cut and paste mix relative movement,making the material mixed fully in the process,then the open
system of knife cut to make stable granule,which is small,even and regular ball.
Technical specification
Number |
Project Name |
Parameter values |
||||
KHZ-250C |
KHZ-150C |
|||||
1 |
Nominal volume |
250L |
150L |
|||
2 |
Mixing system electromotor (proportion more than 0.6/cm3) |
?100kg |
?60kg |
|||
3 |
Mixing system |
Motor |
Model |
YD180L-6/4 |
YD160L-6/4 |
|
|
Power |
11/14KW |
9/11 KW |
|||
|
speed |
970/1450r pm |
||||
|
The speed of the speed reducer rate |
1:6 |
||||
|
The speed of mixed slurry granulating systems motor |
160/240rpm |
||||
4 |
Granulation system |
Motor |
Model |
Y112M-2 |
Y100L-2 |
|
|
Power |
4KW |
3KW |
|||
|
Speed |
0~3000rpm |
||||
|
|
Quantity of granule cut device |
8 PCS each set |
|||
5 |
Net quantity of compressed air |
0.125m2/min |
||||
6 |
Working pressure |
>0.4MPa |
||||
7 |
Noice |
<75dB |
||||
8 |
Dimension |
2200*940*1490(mm) |
2050*800*1300(mm) |
|||
9 |
Machine Weight |
1200kg |
1000kg |
