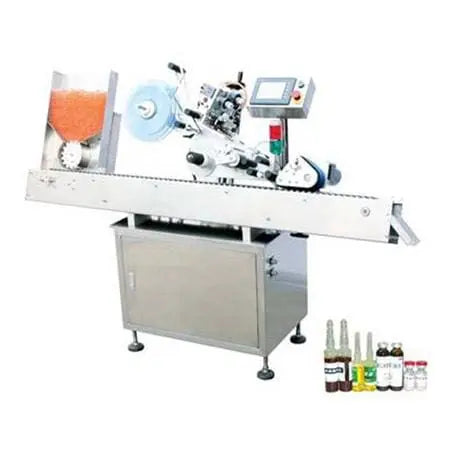

Horizontal Self-adhesive Labeling Machine (mpc-bs)

APM-USA

$4,000.00
SKU: P4923S

Application:

Horizontal Self-Adhesive labeling machine is widely used for such industries as food, medicine, fine chemical, cultural supplies, electronics and so on. It is applicable for the labeling of the objects with small diameters and unable to stand up easily, such as oral liquid bottles, ampoule bottles, needle tube bottles, batteries, hams, sausages, test tubes, pens and so on.

Technical parameter:



Model

MPC-BS

MPC-BS-300

Drive

Step motor

Servo motor

Labeling speed

100-220pcs/min

100-300pcs/min

Label size

W:10-90mm   L:15-100mm

Precision

+0.5mm(subject to roundness and verticality of the bottle)

Label roll

Max.:?380mm

Label core

Stander:?75mm

Machine size

1800*600*1400mm

Weight

220kg

Power

AC 110V/220V 50/60HZ 550W

Coding device

Pneumatic DT-380
