Dpp260l Blister Machine

APM-USA

$4,000.00
SKU: P4637S

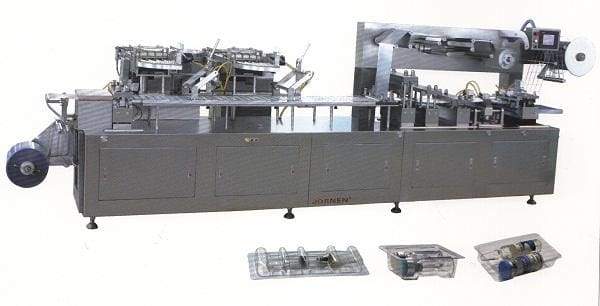

DPP260L Blister Machine

Descreption:

    This Blister Machine's struction and performance are similar to the DPP-260 series.

It is suitable for for the blister packaging of comparatively larger items.e.g.ampoules,syringes,

vials,large pills,syrups,foods,batteries and electrical appliances,etc.It can be equippe with an

automatic feeder and ampoule printing system.As more  complexly-shaped items maay need

to be fed manually,the working platform can be extended about 1 meter.

Main Technical parameters:



Max.speed

42 punches\min

Max.output

168 blister\min(blister size 57mm*80mm)

Max.forming area

245mm*170mm

Max.forming depth

30mm

Material

Max.width 260mm

Machine power

9.6kw

Machine dimension

4700mm*840mm*1700mm

Machine weight

2300kg
