Dpp260ki International Model Blister Packing Machine

APM-USA

$4,000.00
SKU: P4612S

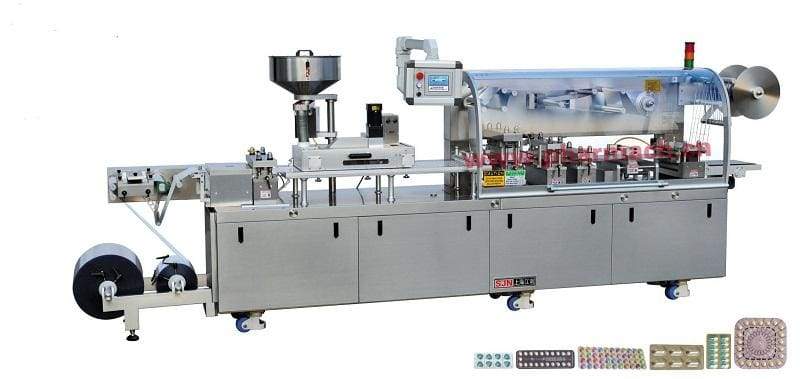

 DPP260Ki international model blister packing machine

Description:

The pursuit of perfect detail is impenetrate through the design and production process. All the main parts are made of high grade stainless steel and alu-alloy material, and machining by advanced high precise tolling machines (CNC milling machine, wire cutting) which elides disadvantage of traditional lock smith process in precision and retain finishing texture reveal sense of honor.
Exquisite Camber transparent cover (assures safety operation) and draw bench treated stainless steel door adds the elegant visualize and art charm of machinery.
This great masterpiece of the times congeals the effort of two generations and over 20 year’s cumulated experience (during which obtain 12 national patents). As this 30th anniversary of China’s reform and opening-up, we have the pleasure to hand you herewith DPP260Ki for your appraise.

Performance characters:

1.The production efficiency is rapidly increased by holding two rolls of forming foil with large diameter to reduce frequency of replacing material, equipping cut and path station for easy and fast replacing of material, using fast lock method enable replacing of sealing material easily done within 10 seconds, adopting waste foil cutting method enables continuous production elides stop machine to settle waste foil collecting roll.

2.Separate the operation zone and transmission zone stops pollution and make daily clean work easier.

3.Servo motor enables precise synchronization, feeding length can be randomly set through the HMI.

4.Universal mechanism enables Al/Pl (heat forming) switch to Al/Al (code forming) easily by changing moulds and feeder. (Have applying for national patent)

5.Big break in feeding method for Al/Al packing enables fast feeding speed for irregular shape tablets.

6.Novel mould oriental mechanism satisfied the common request on fast change for moulds.

7.Sealing cylinder is put inside machine body to improve machine structure. (Reduce the center of gravity, increase the stability of machine, and have applying for national patent)   High punch frequency: Al/Pl?70 punches/min; Al/Al?50 punches/min

Main Technical Parameters:



Max. Punch Speed:

AL/PL: 70 times/min

AL/AL: 50 times/min

Max. Production Capacity:

Al/Pl: 400,000 pills/hour

Adjustable range of stroke:

?160mm (normal standard), can be custom made

Max. Forming Area:

245×112

Max. Forming Depth:

AL/PL: 12mm

AL/AL: 12mm

Specification of packaging material:

(width of material: 130-260mm)

Medicine PVC: 260×0.25 (0.15-0.5)mm

Heat-sealing PTP:260×0.02mm

Forming AL: 260×0.12(0.10-0.18)mm

Total Power:

9.6 KW

Main motor:

2.2 KW

Forming heating plate:

2×1.5 KW

Sealing heating device:

1.2 KW

Air Pump(Air Compressor)Volume flux:

?0.38m3/min

Dimensions of overall machine(L×W×H) :

3940×720×1580mm

Dimensions of packing case(L×W×H) :

4100×880×1740mm

Separate packing case

2000×880×1740mm and 1550×880×1740mm

Weight:

1800kg
