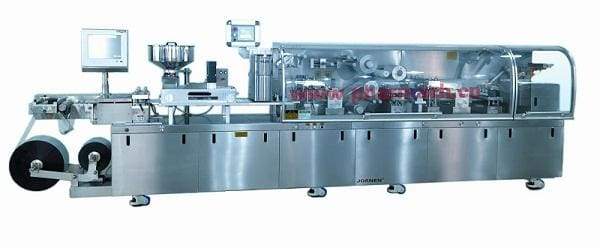

Dpp260h3 Blister Machine



DPP260H3 Blister Machine


DPP-260H3 Blister Machine adds one tropical alu forming sattion and a second sealing station to allow the

alu\pvc package to be sealed with formed tropical alu again.The shrinkage of packaging material is minimized

to ensure the synchronization of blister pocket by means of double servo-regulated drag system.It can strengthen

the sealing effects and protect the medicine fron light.(This machine also can package both alu\pvc and alu\alu)

The machine can equip a product inspection and rejection system,and also can connect with the Cartoner to form

an Automatic pharmaceutical Packaging Line.

Main Technical Parameters:

Max.speed: alu\pvc\alu45 punches\min,alu\pvc 60punches\min

Max.output: 80 blisters\min (Alu\pvc\alu blister size 57mm*80mm)

Max.forming area: 245mm*140mm

Max.forming depth: 12mm

Material: Max.width 260mm

Machine power: 13kw

Machine dimension: 5000mm*720mm*1750mm

Machine weight: 2200kg
