Dpp-250g Blister Packaging Machine

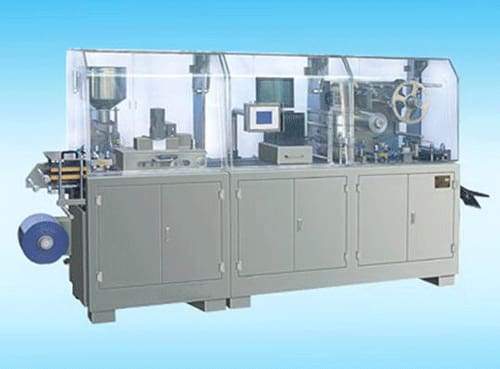

DPP-250G Blister Packaging Machine


DPP-250G Blister Packaging machine collection light, machine, electricity, gas as incorporator, have PLC program control, servo pulling, photography detecting, VS printing photoelectric, security cover, it can automatic accomplish forming, feeding, sealing, pressing, cutting etc. this machine suit for (AL/PVC, AL/AL,AL/AL/AL) packing of pharmacy, foodstuff, electron, medicine treatment, metals goods. The collocate will according to custom request: Siemens electricity of Germany, servo pulling of Panasonic, Festo pneumatic component of Germany, watt photography technical of Japan, and so on.

Technical parameter:

Cutting frequency :20-240 plates/min

Productivity:18000-236000 pieces/h

Max. forming area: 160mm*240mm

Max. forming depth:26mm

Adjusting range of travel:40-160mm

Size of standard plate :80*57mm

Width and thickness of PVC and PTP: PVC:250*0.15-0.45mm


Power supply: 380V 50HZ, Main motor 1.5kw, Hot-sealing 4.5kw

Capacity of air compressor:?0.2m3/min

Cooling of mold: Tap water or cycling water, 60L/H

Overall size: 3500*1200*1800mm

Weight: 1680kg
