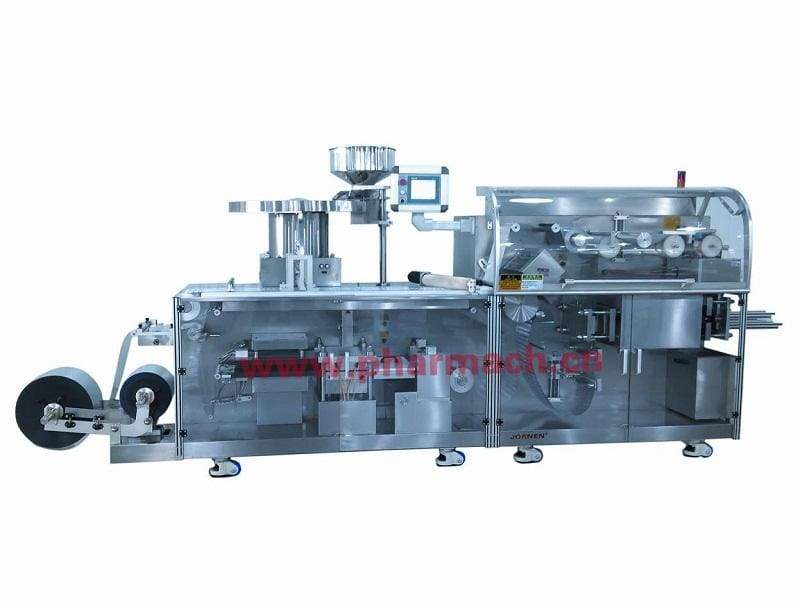

Dph 260 Blister Machine



DPH260 Blister Machine


1.Currently the fastest Blister Machine in China, it is the culmination of over 20 years professional experience.

2.The machine accommodates forming material reels of up to 600mm in diameter and a waste material trimming

cutter,which allow production runs of approximately 90 minutes therefore reducing the material replacement


3.Equipped with integrated forming material splicer to enchance efficiency.

4.Automatic format positioning system achieves straightforward format changeover.

5.Window frame type no-waste-trimming cutter saves packing materials.

6.Adopts transverse cutter which easily collects its blister card and rejects faulty blister.

7.Can be connected to subsequent machines,e.g.High-speed Cartoners,to form a whole pharmaceutical

packaging line.

Main Technical parameters:

Max.speed: Alu\alu 100 punches\min, alu\pvc 200punches\min

Max.output: 800 blisters\min.(alu\pvc blister size 57mm*80mm)

Max.forming area: 245mm*180mm

Max.forming depth: 12mm

Material: Max.width : 260mm

Machine power: 15kw

Machine dimension: 4800mm*1250mm*2000mm

Machine weight: 2500kg
