Dpb-320e Flat Plate Automatic Blister Packing Machine

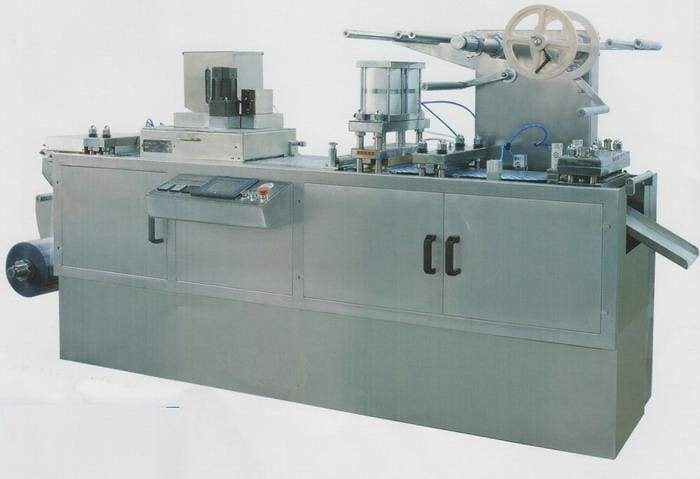

DPB-320E Flat plate automatic blister packing machine

  1. Application:

1) Eye marking sealing device with sensor trace can be added for option.

2) Plexiglas cover can be added for potion.

  1. Product specify

DPB-320 model flat plate automatic blister packing machine is a high-tech packing machine Al-Al, Al-PVC, paper-plastic packing. It is adopting PLC, frequency converter and man-machine interface with features of all round function, ease for operation, stable running and qualified with GMP. Because of its large forming area and more plates per cutting (standard sheet: 5 plates once), to a certain extent, it meets the needs of enterprises that of scale output, especially for candy and milk tablet etc packing in food industry. The products have been appraised as the provincial science and technology accomplishments.

  1. Feature

1) Blister forming, heal-sealing, lot number printing, avulsion line impressing and cutting all adopt gear mandrel orientation, each can move freely in the mandrel when rotating the hand wheel and that can be adjusted and orientated with the help of staff gauge.

2) Manipulator towing, adjustable travel range, which can fit for blister packing of different sizes. Without altering the circumstance of camlift, it adopted culms double pendulum device, thus increasing the traction travel range(it can reach as long as 200mm). All the movement of heating, forming, upper and lower net veins pressing, air cylinder pressing, feeding, lot number printing and cutting can be done very simple, automatically and accurately.

3) Positive pressure forming matched with mechanical punch ensures well blister forming, and can be collocated with special automatic feeder to fit for certain packing such as ampoule, vial, syringe, big honey pill, medical appliance or other special shapes.

4) Main transmission part adopts parallel axis and bevel wheel speed reducer. Forming, heat-sealing and impressing moulds adopt bolt orientating which leads to precise orientation , easy to change moulds and material saving.

5) Detachable design makes the machine easy to be carried and installed according to user’s requirement.

  1. Main technical parameters:

Cutting frequency(Times/min)


Production capacity(pcs/h)


Max.Shaping areas and depth(mm)

310 x 150 x 26(standard 310 x 150 x 14 )

Travel range(mm)

40-160(Can be lengthened to 180mm as user's requirements)

Standard plate(mm)

80 x 57 (can be manufactured as user's requirements)

Air presure(Mpa)


Air syppiy


Total power

380V/220V 50Hz 6.2kw

Main motor power(kw)


PVC rigid sheet(mm)

0.15-0.5 x 320

PTP aluminum foil(mm)

0.02-0.035 x 320

Dialysis paper(mm)

50-100g x 320

Mould cooling

Tap water or circulating water

Overall dimensions(mm)

3300 x 775 x 1600 (L x W x H)
