Dpb-250b Self-checking Aluminum-aluminum Blister Packing Machine

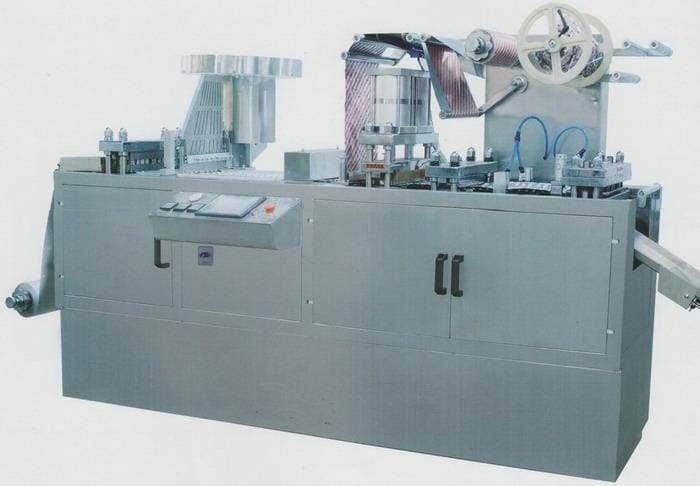

DPB-250B Self-checking Aluminum-Aluminum blister packing machine

  1. Application:

1) Eye marking sealing device with sensor trace can be added for option.

2) Plexiglas cover can be added for option.

3) The machine conforms to GMP requirement and is suitable for aluminum-aluminum, aluminum-plastic, paper-plastic packing.

  1. Product specify

The machine is the latest product in our company adopting PLC, frequency converter, and man-machine interface. It can check on-line and eliminate the waste plate by itself. In accordance with GMP rule requirement, it is an ideal blister packing machine for aluminum-aluminum, aluminum-plastic packing. And it has got high popularity. The products have been appraised as the provincial science and technology accomplishments.

  1. Feature

1) Equipped with fiber-optic checking mechanism, which can check and eliminate by itself the waste plate with lack of medicine, thus gain a qualified recovery rate of 100%

2)Blister forming, heat-sealing, lot number printing, avulsion line impressing and cutting etc all adopt gear mandrel orientation, each can move freely in the mandrel when rotating the hand wheel, and the machine equipped with a staff gauge and tightening nuts for calibration and orie-ntation.

3) Forming mould , heat-sealing mould and pressing mould adopt bolt orientating, with features of accurate orientation, easy to change moulds and material saving.

4) All the movement of heating, forming, upper and lower net veins pressing, air cylinder pressing, feeding, lot number printing and cutting can be done very simple, automatically and accurately.

5) Main transmission part adopts parallel axis and bevel wheel speed reducer, with stable running, low noise and long service life.

6) The forming of hard Aluminum of other factories adopts the concave-convex coordination to lock the mold and it will leave behind a scoop channel on the plate. The travel range must be prolonged above 2mm, so that the scoop channel will be cut as scrap. It is calculated the scrap sum up to several hundred thousand Yuan annually. The forming of hard aluminum with our equipment adopts the imported & special rubber lock mold. The surface of the molding is smooth. Each cutting will save above 2mm the material(approximately2.5%). Because the price of cold forming aluminum is expensive, Massive materials will be saved annually by using our machine. Thus the economic efficiency is remarkable.

7) The body of machine is manufactured separately in order to move the machine into workshop conveniently.

  1. Main technical parameters

Cutting frequency(times/min)

Al-Al 6-25 Al-plastic 6-50 paper-plastic 6-50

Max.production capacity(pcs/h)

Al-Al ?110000 Al-plastic ?230000

Max.forming area and depth(mm)

Al-Al 240 x 150 x 15 Al-plastic 240 x 150 x 26

Travel range(mm)

40-160(can be manufactured as user’s requirements)

Standard plate(mm)

80 x 57(can be manufactured as user’s requirements)

Air pressure(Mpa)


Air supply


Total power

380V/220V 50hz 6.2kw

Main motor power(kw)


Forming Aluminum(mm)

0.10-0.15 x 250

PVC sheet(mm)

0.25-0.5 x 250

PTP aluminum foil(mm)

0.02-0.035 x 250

Dialysis paper(mm)

50-100g x 250

Mould cooling

Tap water or circulating water

Overall dimension(mm)

3000 x 730 x 1600(L x W x H)
