The Usa Rotary Pharmaceutical Automatic Candy Salt Raw Material Powder Cheap Price Pill Making

APM-USA

$5,000.00
SKU: P2927S

Product Description

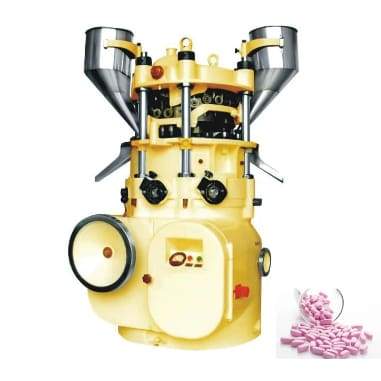

               This machine is a single-press type, continuous automatic tablet press for pressing the granular raw material into the round tablets and irregular tablets etc. It is especially caters for small-batch production.
This machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
         In addition, it is equipped with the overload protection devices. The powder absorbing box is installed on one side of the machine. It can absorb the powder from the operation of the machine via suction port to avoid bonding and clogging, and it also can recycle the raw material for reproduction.

Features.

  1. The outside part of the machine is full-enclosed. The material of the cover and internal table are made of stainless steel. The surface of turntable is specially disposed to keep the surface luster and prevent it from being polluted, meeting the GMP requirement.
  2. It has transparent windows so that press condition can be observed clearly and windows can be opened for cleaning and maintenance. The lay-out of all the controllers and the operate parts is reasonable.
  3. All the drive devices are located inside the machine so keep the machine clean.
  4. The machine can press not only round tablets but also different geometrical shape tablets, double-layered and annular tablets, the tablets may have the impressed on both sides.
  5. Overload protection unit is included in the system to avid the damage of the punches and apparatus, When overload occurs, the machine will stop working automatically.
  6. Powder absorbing device could absorb the powder in the tablet-pressing room.

Model

ZP-17

Punch dies quantity

17 sets

Max. pressure

60KN

Max. tablet diameter

20mm

Max. depth of filling

15mm

Max. tablet thickness

6mm

Turret speed

37 rpm

Production capacity

40,800 pieces of tablets per hour

Motor

2.2KW, 950rpm, 380V/220V, 50Hz/60Hz

Dimension(L*W*H)

650*900*1500mm

Weight

1000KG

Remark

Model

ZP-17E

ZP11

ZP1100

ZP37

ZPW125

ZP33

Punch dies quantity

17

11

39

37

25

33

Max. pressure

60

100

80

80

80

40

Max. tablet diameter

20

45

25

13

16

12

Max. depth of filling

15

45

18

15

18

18

Max. tablet thickness

6

20

7

6

7

Turret speed

37

12

65

14?35

40

45



Production capacity



40,800



7920



152100



15.5



88800



43000--110000



Motor

2.2 KW950rpm, 380V/220V, 50Hz/60Hz

5KW950rpm, 380V/220V, 50Hz/60Hz

4KW950rpm380V/220V50Hz/60Hz

4KW950rpm380V/220V,50Hz/60Hz

4KW950rpm380V/220V,50Hz/60Hz

2.2KW380/50 HZ/HZ

Dimension(L*W*H)

650x900x1500

1100×1000×1900

960×910×1750

1500x1300x1650

1050*900*1880

930x900x1600

Weight

1000KG

2000

1650

1950

2000

850
