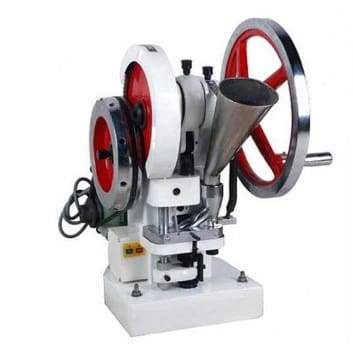

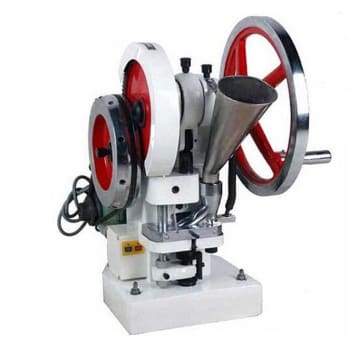

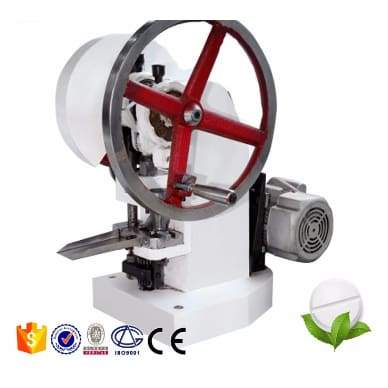

Tablet Press Machine Tdp0/tdp 1.5 / Tdp 5/ Tdp 6 for Steroids

APM-USA

$2,900.00
SKU: P2870S

Automatic Single Punch Tablet Press Machine?

The single stamping machine is suitable for the suppression of Chinese medicine tablets, western medicine tablets, chewing tablets, calcium tablets, mouth buccaneer tablets, spirulina slices, milk slices, candy slices, effervescent tablets, camphor pill (sanitary ball), aromatic slices, flavor blocks, disinfectant tablets, catalyst, chemical fertilizer tablets, pesticide tablets, button batteries, electric components, metallurgical powder ceramics particles and so on. It's a small desktop electric (manual) continuous press machine.

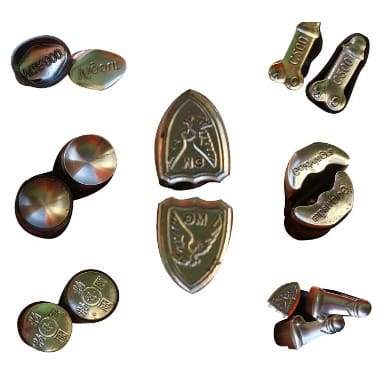

The machine is equipped with a punch die, the material's filling depth and the thickness of the press can be adjusted. Various shapes of molds can be provided according to customer requirements. The single stamping machine can be used in pharmaceutical factories, chemical plants, hospitals, scientific research units, laboratory trial production, and small batch production. This machine has excellent performance, strong adaptability, easy to use, easy to maintain, small volume and lightweight, and can also be used for hand-held tablets when there is no electricity. This machine only has one charge die, the filling depth and the thickness of the press can be adjusted. It can adapt to the requirements of the pharmaceutical industry to suppress various Chinese and Western medicine and other industries to suppress a variety of similar products. It is well received by the broad users of various industries.

Model

1.5T

5T

6T

Max.Pressure

15

50

60

Max.The diameter of the Tablet mm

12

16

25

Max.Depth of Tablet in mm

11

12

16

Max.The thickness of Tablet mm

6

6

10

Production Capacity pc/h

6000

6000

6000

Motor w

250w  1400r/min

750w 1400r/min

1.1kw 1400r/min

Overall Size

580*450*625

580*500*700

650*600*700

Net Weight in kg

70kgs

125kgs

160kgs

There will no further notification if the appearance or parameters of our products are modified.
