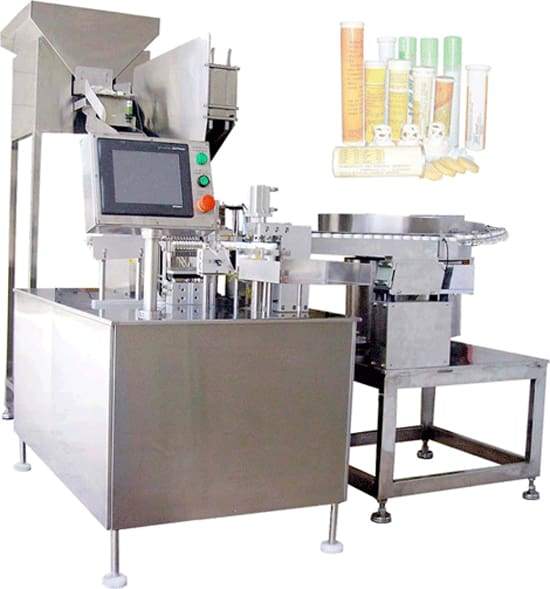

Zpp-40a Table Bottling Machine for Straight-tube Bottles

Application:

The ZPP-40A straight-tube bottles filling machine is applicable to the packing of bigger and thinner tablets which are orderly fed into straight-tube bottles in a single row in an overlapping way. The device utterly adopts a PLC for centralized control. Its verified in fiber and photoelectric detections and other kinds of detections to have steady performance and reliably automatic operation. It can automatically give alarms and shut down in case of no tablets, bottles of covers. Its part in contact with the tablets is made of superior 304 or 316 stainless steel, which totally meets the GAP requirement. Thus, it is the best device for pharmaceutical factories, health product factories and food factories to pack effervescent tablets and other products alike.

Technical parameters:

 Voltage: 220V/50Hz;

 Power: 0.8kw

 Feeding capacity: 10-30 tablets/bottle

 Tablet diameter: 16-30mm;

Tablet thickness: 3-8mm

Output: 40bottles/minute

Supporting facilities: purifies compressed air whose pressure and consumption are 0.5-0.6Mpa and 0.28m3/minute respectively;

  External dimensions: 2300*1600*1680mm; weight: about 400kg
