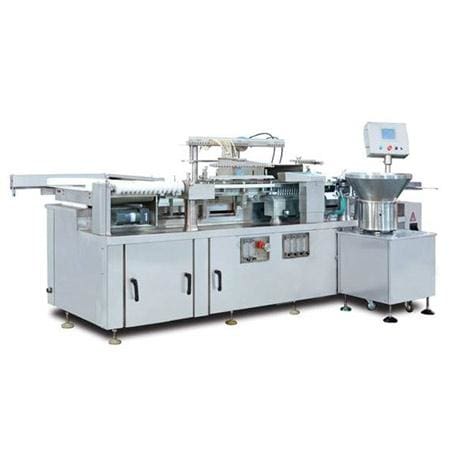

Akgf Series Filling, Sealing, Plugging Machine

APM-USA

$4,000.00
SKU: P5291S

Application:
It is mainly used for filling and sealing of ampoule or vial in pharmaceutical factories.
Characteristic:
1?This machine adopts many stations step conveyer system and balcony type structure. It adopts uniform speed starwheel to input bottles, rotary stoppering structure.
2?Walking beam is three section type, which has short pitch, better rigidity. It moves more stably, improves running stationarity and product qualification rate.
3?It adopts appearance patent technology. There is no joint on table board, and no sanitary blind angle to connection of machine part.
4?It can equip with glass pump, metal pump, peristaltic pump or ceramic pump as customer’s request. Control method can adopt mechanic control or servo control. Piston pump adopts new type bidirectional, quick installing patent technology.
Technical parameters:
Type
Suitable sizes
Output
Consumption of gas
Consumption of oxygen
Power
Net weight
Overall dimensions
AKGF10
1-20ml ampoules
2-10 ml  vials
8000-28000pcs/h(ampoules)
8000-20000pcs/h(vials)
0.05Mpa 500L/h
0.3-0.5Mpa 1500L/h
2.4kw
3000kg
3500×1880×1380mm
AKGF8A
1-20ml  ampoules
2-25 ml vials
6000-23000pcs/h(ampoules)
6000-18000pcs/h(vials)
0.05Mpa 400L/h
0.3-0.5Mpa 1200L/h
2.4kw
3000kg
3500×1880×1380mm
AKGF8
1-20ml ampoules
2-10 ml vials
6000-23000pcs/h(ampoules)
8000-18000pcs/h(vials)
0.05Mpa 400L/h
0.3-0.5Mpa 1200L/h
2.4kw
2600kg
3200×1880×1380mm
