Fluidized Bed for Instant Coffee Granular
Product Description

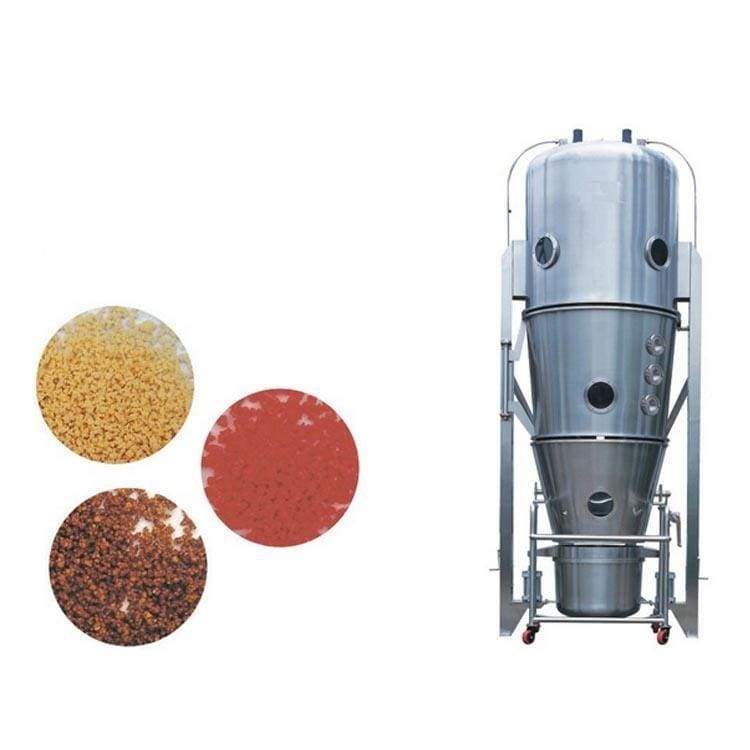

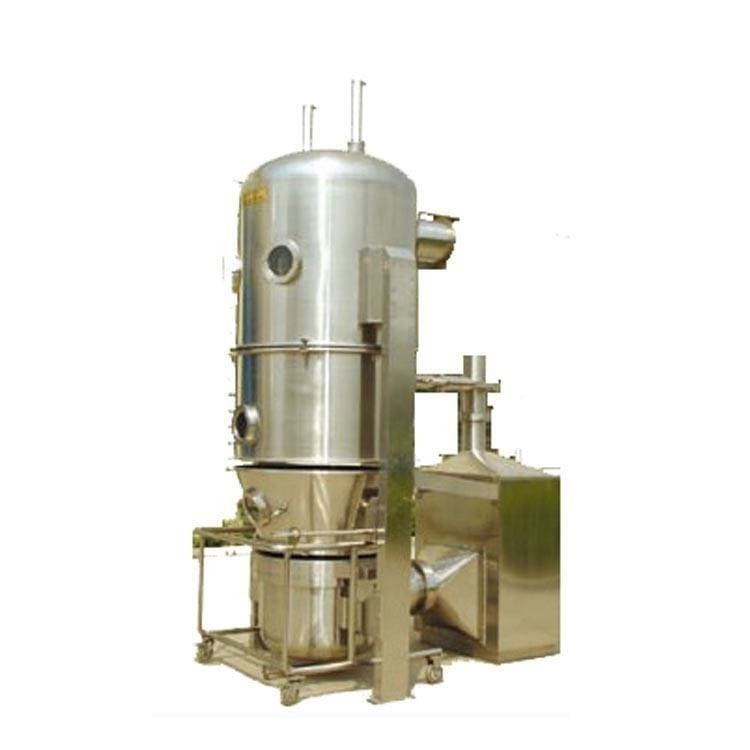

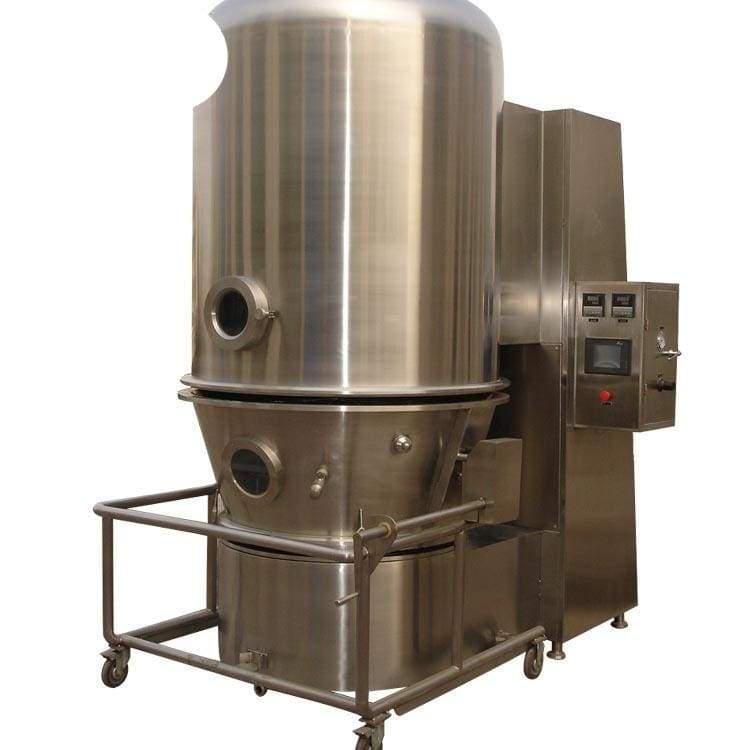

FL-C series Stainless Steel Fluid Bed Dryer Granulator.
The machine is mainly used for the operations of mixing, granulating, drying and coating of granule “Top Spraying”, etc of powder material in pharmaceutical industry, foodstuff industry, chemical industry, etc. Such as granule of tablet, granule for quick resolving drinking, condiment.
The machine is designed and manufactured in accordance with JB20014-2004 ? Fluid-bed Granulator In Medicine ?
|
Technical parameters
|
||||||
|
Specification
|
5
|
15
|
30
|
60
|
120
|
200
|
|
Capacity (Kg / batch)
|
5
|
15
|
30
|
60
|
120
|
200
|
|
Scope of application for liquid(g/cm3)
|
<1.3
|
|||||
|
Material yield rate (%)
|
?99
|
|||||
|
Qualified rate of end products (%)
|
?85
|
|||||
|
Granules performance index
|
Confirm to ?Chinese pharmacopoeia?2000 edition
|
|||||
|
Container volume (L)
|
22
|
45
|
100
|
220
|
420
|
670
|
|
Diameter(mm)
|
500
|
550
|
700
|
1000
|
1200
|
1400
|
|
Power of fan (Kw)
|
3
|
5.5
|
7.5
|
11
|
18.5
|
22
|
|
Power of supply liquid motor (Kw)
|
0.37
|
|||||
|
Pressure of steam (Mpa)
|
0.4-0.6
|
|||||
|
Consumption of steam (Kg/h)
|
18
|
35
|
60
|
120
|
140
|
180
|
|
Pressure of compressed air (Mpa)
|
0.4-0.6
|
|||||
|
Consumption of compressed air (m3/min)
|
0.3
|
0.6
|
0.9
|
0.9
|
0.9
|
1.1
|
|
Working temperature(?)
|
Normal temperature -120? could adjust
|
|||||
|
Noise (DB)
|
Installed separated with fan ?75
|
|||||
|
Executive standard
|
JB20045-2005
|
|||||
|
Overall dimension of machine (L×W×H)
|
Pls refer to installation drawing or customer`s room
|
|||||
All datas are used for reference only. According to the condition of material, there will be no further notification if any modification.
