Dpb-260d Flat Plate Alu-plastic/alu-alu Automatic Blister Packing Machine

APM-USA

$4,000.00
SKU: P5213S

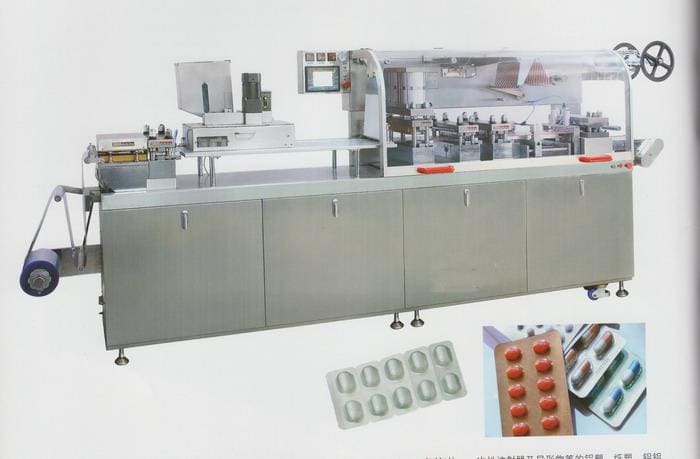

        DPB-260D Flat plate Alu-plastic/Alu-Alu automatic blister packing machine

  1. Application:

IT is suitable for capsule, tablet, big honey pill, candy, liquid(ointment), paste, syringe as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.



  1. Product specify

This product is a new packing machine designed by our company; it has reached domestic leading level. It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, syringe as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc. This machine adopts micro-computer PLC, frequency converter, touch panel operation, high automation; it is an ideal blister packing equipment. The product passed the provincial science and technology appraisal.



  1. Feature

1)     Traction drive by servo motor(traction by precision leadscrew or rubber press roller), with precise synchronization. The length of travel range can be set in man-machine interface.

2)     Equipped with eye marking system, the background of printed pattern is uniform and looks pleasant.

3)     Available for alu-plastic(hot forming) and alu-alu(cold forming), only change mould and feeder for alu-alu packing.

4)     Various types of feeder solve the difficulty for irregular shape products packing.

5)     Five stations forming, heal-sealing, batch number embossing, avulsion line impressing and cutting etc all adopt gear mandrel orientation, each can move freely in the mandrel when rotate the hand wheel, easy to adjust and accurately.

6)     Newly mould orientation device speed up the mould changing requirement.

7)     Equipped with plexiglass cover: the operation area is isolated with transmission organ, avoids pollution, easy for clean.

8)     Apply online detection and ejection system, and the camera detection system can be chosen for option.



  1.      Main technical parameters

Cutting frequency(times/min)

Alu-plastic packing:precision leadscrew?60 times/min, rubber press roller?70? Alu-alu packing?40

Production capacity(pcs/h)

(alu-plastic): ?300000?(alu-alu): ?100000

Max.forming area and depty(mm)

250 x 180 (alu-plastic):26 (alu-alu):14

Travel range(mm)

0-180(precision leadscrew) 0-220(rubber press roller)

Standard plate(mm)

80 x 57(can be manufactured as user’s requirements)

Air pressure (mpa)

0.4-0.6

Air supply

?0.36m ³/min

Total power

380V/220V 50Hz 6.2kw

Main motor power(kw)

1.5

PVC rigid sheet(mm)

0.25-0.5 x 260

PTP aluminum foil(mm)

0.02-0.035 x 260

Dialysis paper(mm)

50-100g x 260

Mould cooling

Tap water or circulating water

Overall dimensions(mm)

3900 x 730 x 1600(L x W x H)

Weight(kg)

1600
