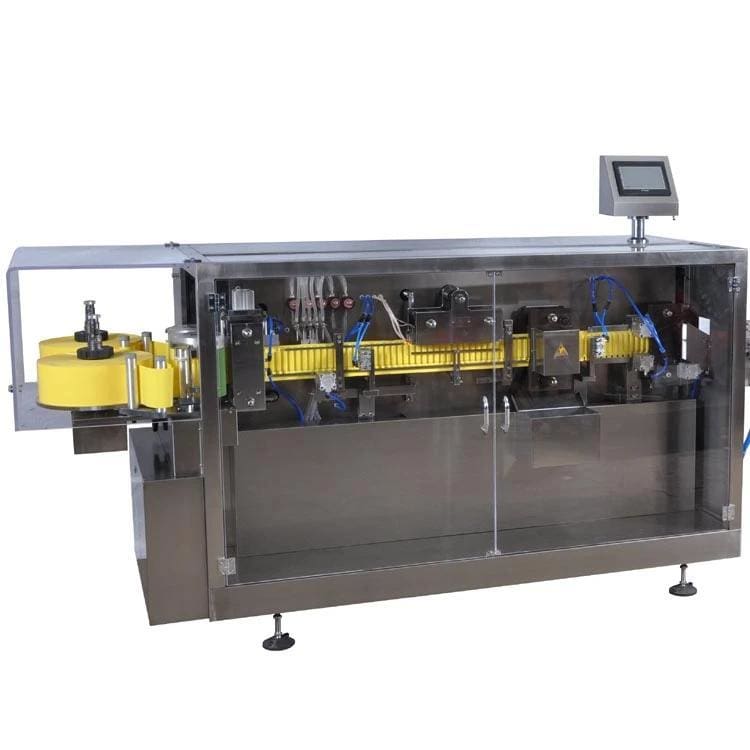

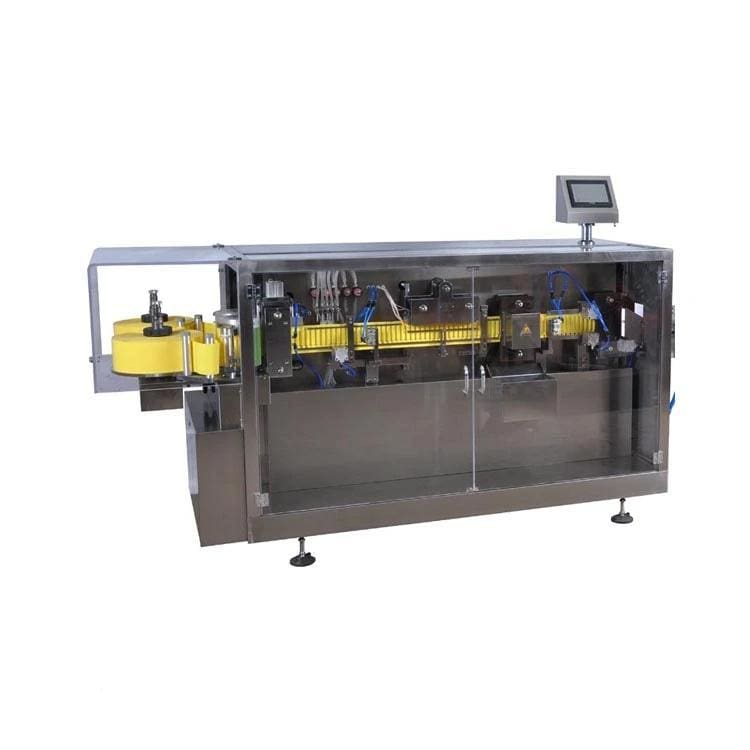

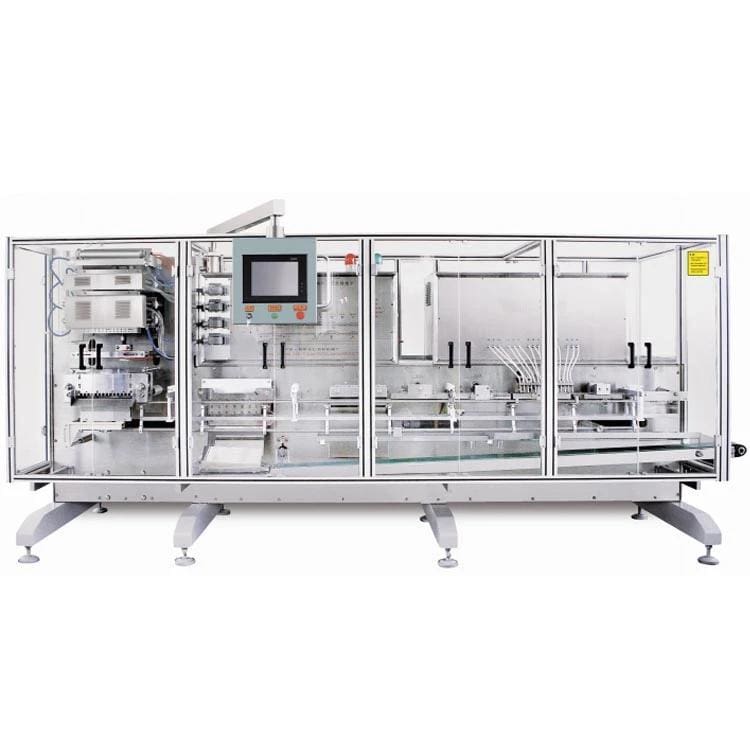

Liquid Bfs Automatic Ampoule Forming, Filling and Sealing Machine
this machine is suitable for the unit dose of medicine drinks, dairy products, health products, food, cosmetics, perfume, agricultural medicine, fruit purees, etc.
Feature
1. PLC control, frequency conversion regulates the speed steplessly.
2. Finish the whole process automatically, including 7 steps in total as putting packing material, forming, filling, printing a lot of numbers, punching, creasing and cutting apart.
3. The human-machine interface, operate easily and clearly.
4. No leaking, bubbles or overflowing in the filling process.
5. All the related parts connecting with liquid adopt high quality of stainless steel, in accordance with GMP standard.
6. Main pneumatic components and electric appliances are imported.
7. Two kinds of filling system, automatic filling or electric peristaltic pump and mechanical filling, precise calculation with the slight error.
Technical parameters
|
|
Model
|
SINO-118B
|
Max Forming Depth
|
12 mm
|
Cutting Frequency
|
0-25 times
|
Packing Material Packaging
|
PVC/PE PET/PE(0.2-0.4)*240mm
|
Capacity
|
1-50ml
|
Installed Power
|
7kw
|
Voltage
|
220-380V/50Hz
|
Weight
|
900kg
|
Overall Size
|
2300*850*1500mm
|
There will no further notification if the appearance or parameters of our products are modified
