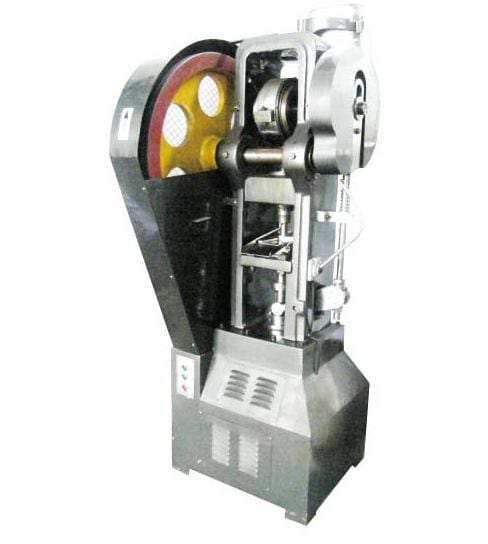

Thp Flower-basket Tablet Press

APM-USA

$4,000.00
SKU: P4568S

THP Flower-basket pill press

Main application:

This machine is one continuous automatic pill press which is one of main equipment for pressing granular raw materials into tablets and could imprint some letter, line, trademark and log on the tablet. This machine could be used in pharmaceutical, chemical, food and electric industries. It can be used to press medicinal tablets, coffee pills, powder metallurgical parts, electronic components, various tablets of pesticide and fertilizer, in small-batch production laboratory and hospital. The machine can press special shaped circular tablets of different kinds.

Features:

A: Excellent performance, strong adaptability, convenient operation

  1. Machine has big pressure. Could press big tablet, for small capacity
  2. Material filling and depth adjusted
  3. Machine could be operated by electricity and hands
  4. Machine could press different tablet size and tablet shape by changing mould.



Technical parameters:



Model

15

20

25

30

45

Pressure?kn?

150

200

250

300

450

Max. stroke of up punch (mm)

110

110

120

130

140

Depth of filling (mm)

70

80

90

100

120

Dia of low punch (mm)

115

115

130

140

100

Diameter of the largest tablet (mm)

55

65

80

85

90

Production number (times/mn)

20-40

20-35

15-35

15-32

12-25

Motor (kw)

3

4

4

5

6

Overall size(mm)

2120x980x960

2100x1000x1050

2180x1020x1080

2240x1100x1040

2330x1165x1080

Net weight (kg)

1100kg
