Tdp Single Punch Tablet Press

APM-USA

$4,000.00
SKU: P5152S

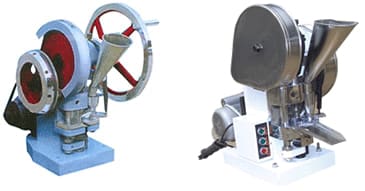

TDP Single Punch Tablet Press

Application

 This machine is designed for pressing tablets from various granular materlals?which is used for pharmaceutical?chemcial?food?hospital?scientfic research institutions?It is applicable to trial manufacturing in lab or produce in small amount different kinds of tablet?sugar piece?calcium tablet and tablet of abnormal shape?It features a small deshtop type press for motive and contlnual sheeting?It can also be hand -operated easy to be operated and maintained, small volume, light weight?one set of punch and de is mounted the depth of the filling material tablet press and thickness of the tablets can be adjusted?

Technical Parameters



Item

1.5T

5T

6T

Max?pressure(KN)

15

50

60

Max?dia of tablet(mm)

12

16

25

Max?dephth of fill (mm)

11

12

16

 Max?thickness of tablet(mm)

6

6

10

Production capacity(pc?h)

6000

6000

4000

Motor(w)

550w1400r?min

750w1400r?min

1?1w1400r?min

Overall size(mm)

580 X 450 X 625

580 X 500 X 700

650 X 600 x 700

Net weight(kg)

70

125

160
