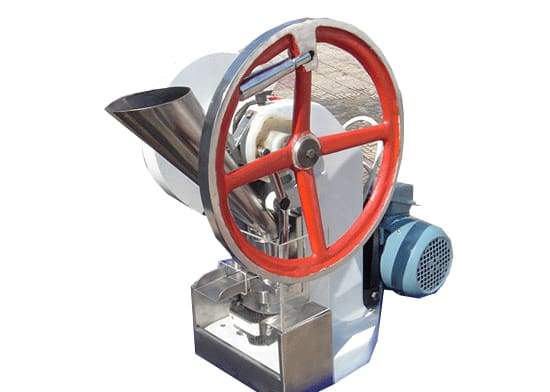

Ta-iii Single Punch Tablet Press

APM-USA

$4,000.00
SKU: P4571S

TA-III Single Punch Tablet Press

Main Application

T-A ?manual and electric Single Tablet Press is produced to adapt the demand of all levels hospital, medicine factories, chemical and scientific research to press the granular materials into tablets.

Main Characteristics

The machine structure is simple, and it is convenient to operate, and small volume, weight light, convenient remounted and carried. It can press tablets by manpower. To adapt to press Chinese herbal medicine, it compares with the former TDP Single Tablet Press of our company, it improves   mechanical intensity, increases driving efficiency, advances pressure, augment depth of filling and enlarge the confines of specification.

Technical Specifications



Model

T-A?

Max. pressure (kN)

60

Max. dia. Of tablet (mm)

24

Max. depth of fill  (mm)

20

Max. production capacity

( tablets/hour)

5500

Motor (W)

550

Speed (r/min)

1350

Net weight (kg)

100

Overall size (mm)

680×440×630
