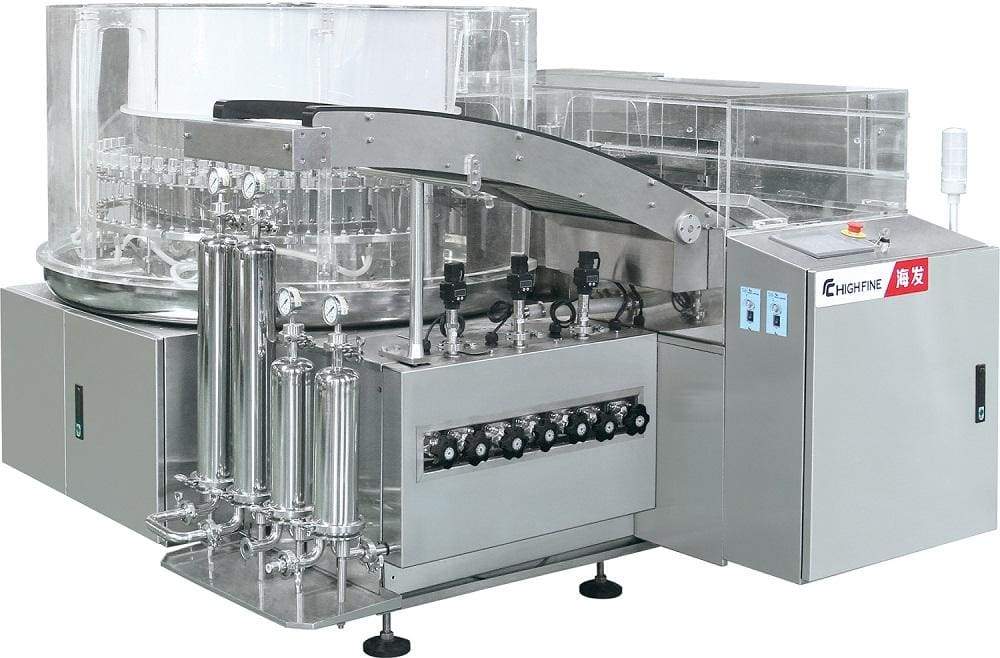

Vertical Ultrasonic Bottle Washing Machine

APM-USA

$4,000.00
SKU: P4686S

Main application

Vertical ultrasonic bottle washing machine is mainly suitable for cleaning penicillin bottles in pharmaceutical enterprises.It can also be used for cleaning containers such as ampoule bottles and oral liquid bottles.

Characterstics

This machine is a vertical drum structure, by mechanical hand,overturning and needles reciprocating tracking mode,by using rough ultrasonic washing and recycling water,WFI and clean compressed air alternating jet cleaning method,finishing washing of internal 3times water washing,3times CA washing,and external 1time water washing and 1time CA washing.In the whole cleaning process,each spray needle is fixed corresponding to a cleaning medium,without cross contamination,and meets the requirements of aseptic production.Cleaning,clarity and visible substances can be tested with good results;it is the most popular cleaning machine in the world today.



Technical parameters

Product

model

HQCL 20A

HQCL 30A

HQCL 40A

HQCL 60A

HQCL 80A

HQCL 100A

HQCL 120A

Suitable

sizes(ml)

2-30ml(vial)

Output

(pcs/min)

50-100

80-150

100-200

150-300

200-400

250-500

300-600

Breakage

Rete(%)

?0.1%

WFI consumption

0.4-0.5m³/h

0.3-0.5MPa

0.4-0.5m³/h

0.3-0.5MPa

0.4-0.5m³/h

0.3-0.5MPa

0.4-0.6m³/h

0.3-0.5MPa

0.6-0.8m³/h

0.3-0.5MPa

0.8-1.0m³/h

0.3-0.5MPa

1-1.2m³/h

0.3-0.5MPa

CA consumption

20-30m³/h

0.4-0.6MPa

20-30m³/h

0.4-0.6MPa

35-40m³/h

0.4-0.6MPa

35-40m³/h

0.4-0.6MPa

45-50m³/h

0.4-0.6MPa

55-60m³/h

0.4-0.6MPa

65-70m³/h

0.4-0.6MPa

Power

supply

380V 50Hz

Power capacity(kW)

13

Total

weight(kg)

1700

1800

2100

2200

2300

2400

2500

Overall dimensions(mm)

2200x1900x1450

2200x1900x1450

2200x1900x1450

2200x2200x1450

2200x2200x1450

2200x2200x1450

2200x2200x1450
