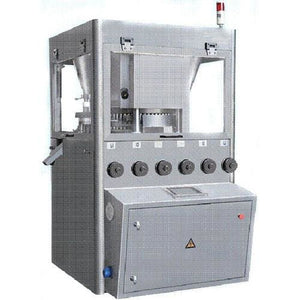

PG Series Automatic High-speed Tablet Press Machine (620)
ZPTS Series Economic-type high speed tablet press Machine (620)
Application:
·Meets GMP requirement can press two layers tablets with different colors, annular tablets, round tablets, engraved tablets and irregular tablets?Available for pharmaceutical factory, food and chemical industries.
Summary:
·Tablets formed Twice by main pressing and pre-pressing .
·Central auto lubrication system
·Double-sided output, high efficiency.
·Force-feeding device controls the flow of powder and ensures the accuracy of feeding. Feeder is easy to be disassembled, and the platform is easy to be regulated. No dead area in press chamber and easy to be observed and cleaned.
·Imported hydraulic pump unit sustains main pressure and pre-pressure, process of pressing goes smoothly with low noise ;
·Equipped with protective unit of overloading, auto stopped while pressure overland.
·An easy disassembled structure has high maintainability.
Technical parameters
      model
data
PG-45
ZPTS-45
PG-55
ZPTS-55
PG-65
ZPTS-65
No. of stations
45
55
65
Tooling type
D
B
BB
Output range(tablets/h)
84600-405000
105600-495000
124800-585000
Rotation speed range(rpm)
16-75rpm
Main pressure
100KN
Pre-pressure
16KN
Max tablet diameter
?25mm
?16mm
?13mm
Max length of irregular tablet
25mm
19mm
16mm
Diameter of die
?38.1mm
?30.18mm
?24mm
Max. filling depth
20mm
20mm
16mm
Diameter of punch
?25.35mm
?19mm
Length of punch
133.6mm
Pitch circle diameter
620mm
Main motor power
11kw
Weight
3800kg
Dimension
1510*1380*2000mm
