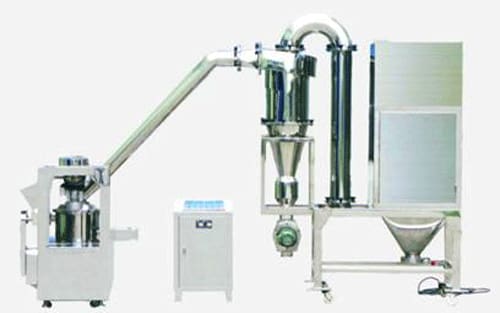

Wfj_15 Mini-efficient Pulverizer
Application:
The machine is made up of main engine, auxiliary engine and electrical control box with the capabilities of winnowing, non-sieve or mesh, even granule size, continuous operation, etc. The machine reaches the international advanced lever and is widely used for material grinding in pharmaceutics, chemical, foodstuff industries, etc.
Working Principle:
Raw material is delivered to the grinding chamber via hopper by spiral feeder, and is cut and sheared by the high speed cutters. Then the material is moved into the whirlwind separator and the sack dust catcher by the negative pressure sucking method. The ejection meets the product requirement.
Technical Parameters
|
Type |
WFJ-15 |
|
Production capacity (kg/h) |
10-200 |
|
Feed size (mm) |
<10 |
|
Discharge size (mesh) |
80-500(depend on the raw material) |
|
Power (KW) |
13.5 |
|
Main speed(r/min) |
?6000 |
|
Overall dimension(L*W*H)(mm) |
4200*1250*2700 |
|
Weight (kg) |
850 |
