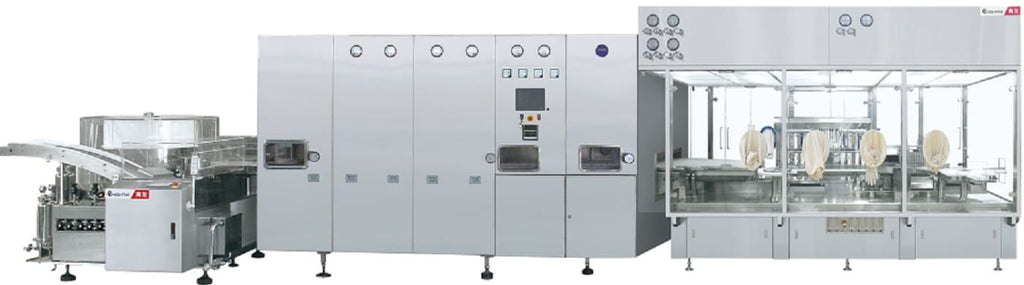

Ampoule Washing Sterilization Filling Sealing Linkage Line

APM-USA

$4,000.00
SKU: P5256S

Ampoule Washing Sterilization Filling Sealing Linkage Line

Main application:



The linkage line consists of vertical ultrasonic washing machine, hot air circulation sterilization tunnel, filling and sealing machine. It can be used in combination or in single machine.The linkage line can complete water spray filling, ultrasonic cleaning and flushing(internal and external), CA flushing(internal and external), preheating, drying and sterilization to remove heat source, cooling, before and after netrogen, filling, sealing after preheating, sealing and other processes.
This line can meet the size range from 1-20ml ampoule of wahing,drying and sterilizing to remove heat source,filling and sealing requirements of the production process.

Characterstics:

1.Vertical ultrasonic washing machine using ultrasonic rough washing,circulating water,WFI and clean compressed air spray to clean the container alternately.Cleaning clarity and visible material detection effect is ideal; itis the most popular cleaning machine in the world today.



2.The sterilization tunnel adopts hot air laminar flow and high temperature sterilization process to preheat, dry, sterilize, remove heat and sterilization process.
3.Filling and sealing machine adopts step-by-step bottle conveying, positioning filling, wire drawing and sealing. The sealing efficiency is high.
4.The interlocking production line adopts PLC control and touch screen operation, which can be used for linkage control or stand-alone operation. The control runs stably and with high automation.

Process flow
